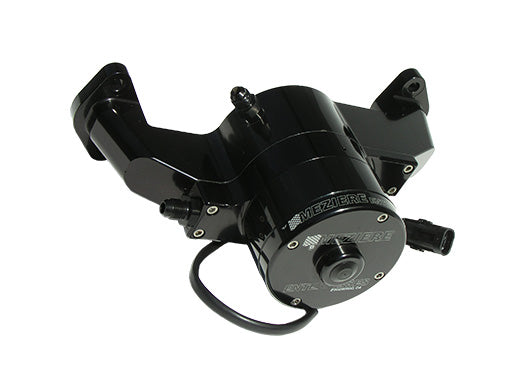

Electric Pump Chevy BB, Trans Pan Ready
Electric Pump Chevy BB, Trans Pan Ready
These pump are a slight variation of our standard WP100 pumps for Big Block Chevy engines. The feature that makes them unique is the extra high and low-pressure ports that come standard. The primary reason for these is to assist in plumbing one of our heat exchanging transmission pans into your cooling system. The -06AN ports can be used for a variety of other reasons, as well.
SKU:WT100S
Couldn't load pickup availability
Collapsible content
Technical Specifications
Belt Drives: Standard BBC design will clear Jesel belt drives and comparable belt drive systems.
Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose.
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The standard pump is 6.78" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 5.9 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, Turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard. These may be added at the factory for an additional cost. Please call for details.
Description & Application
This water pump model features:
Fits big block Chevrolet
Has a high and low pressure #6AN male connection for our transmission pan
Suitable for street or drag strip use – 2400+ hour life expectancy
Show quality finish
All stainless steel hardware included
Light weight. Complete standard big block Chevy unit weighs only 5.9 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Pump will clear cam belt drives and most blower drives
1" NPT inlet adapters are available for #12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose
