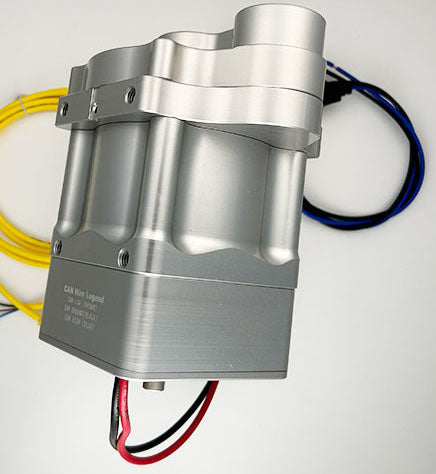

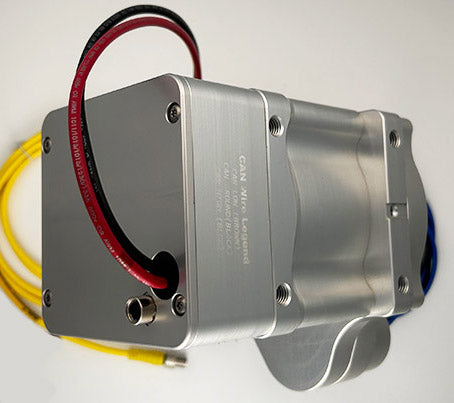

Brushless Intercooler Pump, Bulkhead, 24V, CAN Bus

'- Powerful and efficient brushless motor design.
- Rated at 250 watts continuous duty, 400 watts peak power.
- 24 volt DC input (12 volt available as WP724).
- CAN Bus ready as 0x240, using 3 wire communication.
- Other CAN Adresses available
- CAN commands: On / Off / Set Pump RPM (1000-3300)
- CAN feedback: Request Pump Speed / Request Controller Temp.
- Standard Baud Rate 500K
- Pump is shipped with Com instructions.
- Corrosion and water resistant. Alloy aluminum construction with anodized finish.
- Universal mount provision.

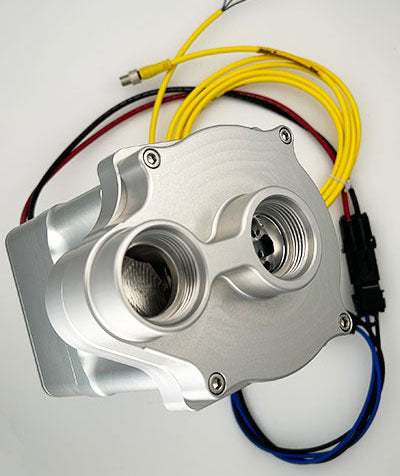

- Standard -16AN female ports in and out.
- "Bulkhead" means the in and out ports are on the same face.
- Fittings available for slip hose and AN hose connections.

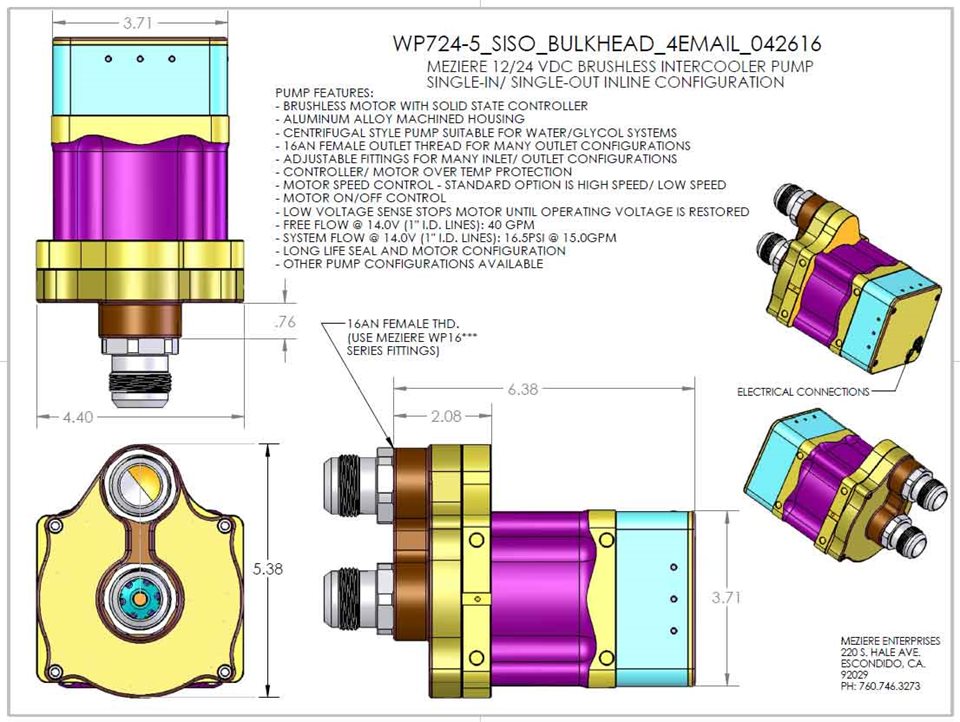

- Compact design. 4.4" x 5.4" x 6.4".
- Expected life exceeds 10,000 hours.
- Designed for ethylene glycol / water coolant systems.
- Sealed for operation in harsh environments.
- Internal thermal protection.
- Operating range: -40F to 230F.

Performance, sophistication, durability…these are all characteristics owned by the 700 series intercooler pumps from Meziere. All billet construction inside and out is just the beginning. The pump is sealed for harsh environments, engineered for long life and can integrate with simple on/off controls as well as the latest CAN technology for full variable speed and condition monitoring. The high RPM brushless motor is extremely reliable and capable of higher flow rates and pressures than any of its competitors.
