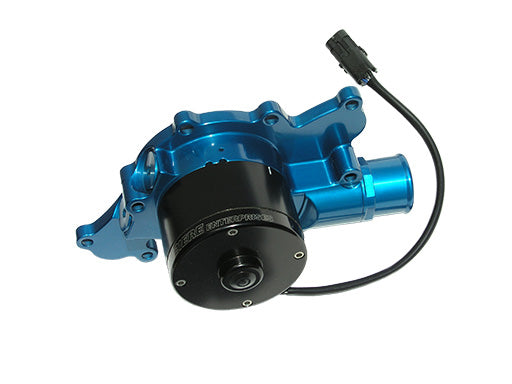

If you are running a cam belt drive on your small block Ford this will not be the correct part number. Please see part # WP173.
Finishing The System: This pump is supplied complete with gaskets and hardware and fittings. You should not need any additional items for this installation.
Inlets available for hose sizes 1.75", 1.50", 1.25" and AN sizes #20 and #16.
This pump model does accept heater and bypass connection as a standard.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 4.5" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 5.3 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. Do not run the pump while charging the 16v system.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. The small block Ford engine has gone through several design changes at the factory since its inception. There are two different 55 GPM pump models that may be right for your engine. For more information regarding small block Ford applications and how to tell which pump is correct for you, please see our SB Ford addendum sheet.
