Meziere Enterprises

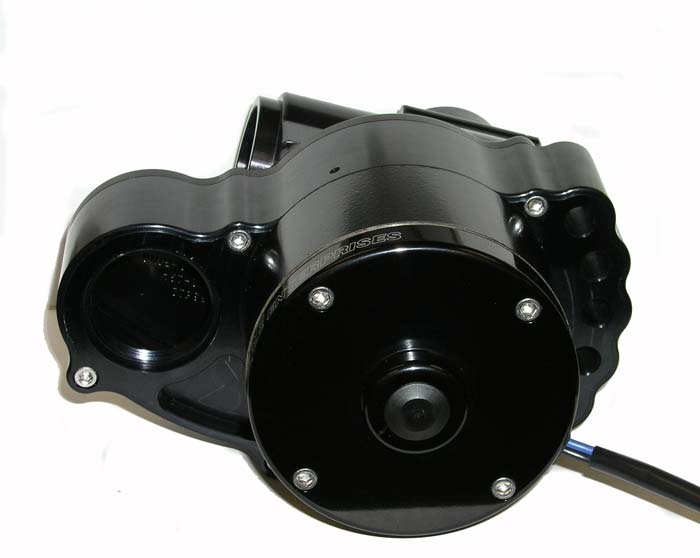

Electric Pump Remote, High Flow Inline, Single out, T-Stat circuit, 55 GPM

Electric Pump Remote, High Flow Inline, Single out, T-Stat circuit, 55 GPM

$1,091.15 USD
$1,091.15 USD
Sale Sold out

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say. Our 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value! Remote pumps fill many different needs. When an engine mounted pump is not available or space limits the ability to use one, the remote pumps are the answer. Meziere makes more remote pump configurations than any other manufacturer in the performance market. We make pumps that flow from 20 to 55+ gallons per minute. Our pumps can be configured to use almost any size line. All of our pumps are built for cooling systems and can operate properly in a harsh environment.

WP365S
View full details

Instructions

PDF

Technical Specifications

Finishing The System: This pump is supplied complete with mounting bracket hardware but without the inlet or outlet fittings. The fittings need to be ordered according to the size of the radiator hoses.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 7.8" long.
Pump Weight: This application weighs 8.1 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.

Description & Application

This water pump model features:
Remote / universal inline design
Thermostat and bypass circuit
Suitable for street or drag strip use.
3000+ hour life expectancy.
Show quality finish.
All stainless steel hardware and 4130 mounting bracket included.
Light weight. Complete standard unit weighs only 8.1 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal.
Single inlet port and single outlet port each threaded #20AN to accept our standard WN Style fittings.
#12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose inlet fitings available.
