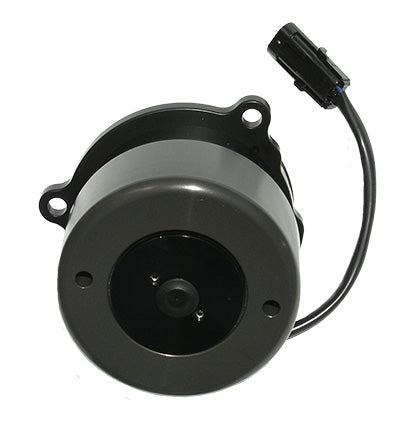

Electric Pump Ford Modular with Small Pulley for Blown Applications, 55 GPM

Finishing The System: This pump utilizes factory hardware and is supplied with an o-ring seal. No additional items should be necessary.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Pulley diameter is 4.7"
Overall Height Dimension: The standard pump is 3.75" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 6.9 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.

This water pump model features:
Fits Ford Modular engine with an aftermarket blower
Idler design allows you to maintain your factory belt-driven accessories. li>Small diameter idler provides clearance for larger crank pulley
Suitable for street or drag strip use – 3000+ hour life expectancy
Show quality finish
Provides 55 gallons per minute free flow rating
Light weight. Complete Modular unit weighs only 6.9 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Note:
This pump will not fit the 2003-2004 Cobra engine.
Note: M
odular pumps do not fit Supercharged GT500 Mustangs.
