Electric Pump, Radiator Mounted, 20 GPM, Single out

Electric Pump, Radiator Mounted, 20 GPM, Single out

$443.08 USD
$443.08 USD
Sale Sold out

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. We say what we mean and mean what we say. Our 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value! When an engine mounted pump is not available or space limits the ability to use one, these radiator mounted pumps can be an elegant solution. These can be configured to use almost any size line. All of our pumps are built for cooling systems and can operate properly in a harsh environment.

WP161
View full details

Instructions

PDF

Technical Specifications

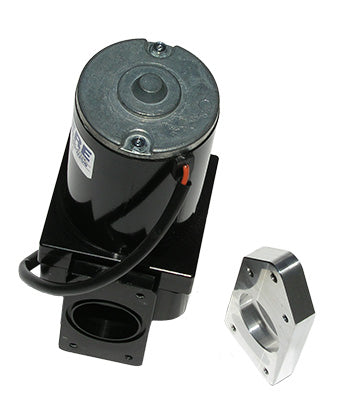

Finishing The System: This pump is supplied complete with the mount plate but without the outlet fitting. The fitting needs to be ordered according to the size of the radiator hoses.
Amperage draw: Under normal use the pump will draw 5-6 amps.

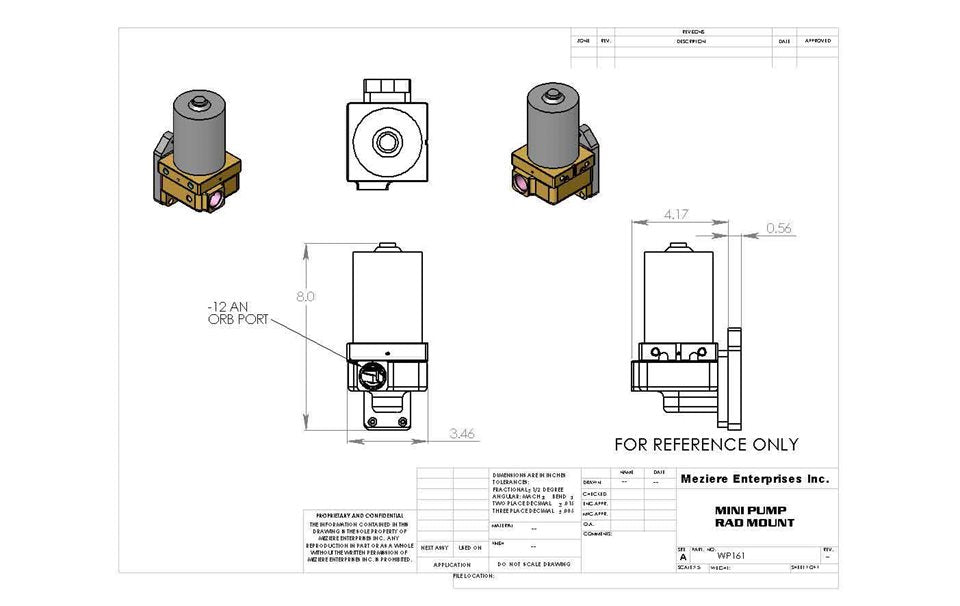

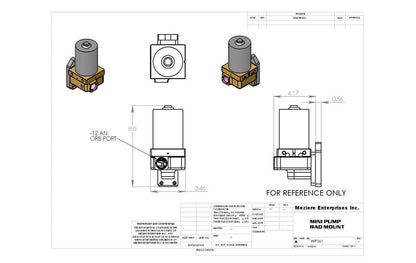

Overall Height Dimension: The standard pump is 4.0" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 5.4 lbs.
16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.

Description & Application

This water pump model features:
Radiator or tank mount, single exit design.
Suitable for street or drag strip use.
2400+ hour life expectancy.
Show quality finish.
All stainless steel hardware and weld-on mounting plate included.
Light weight. Complete standard unit weighs only 5.4 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal.
Single outlet port threaded #12AN to accept our standard #12 O-ring style fittings.
