Meziere Enterprises

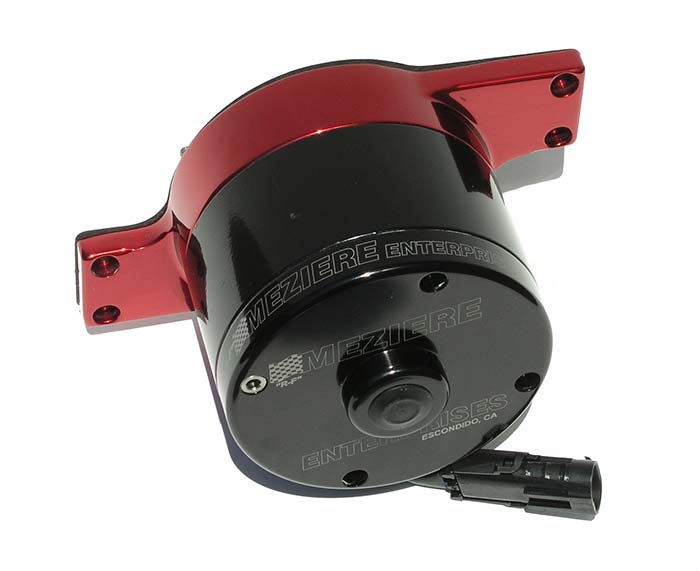

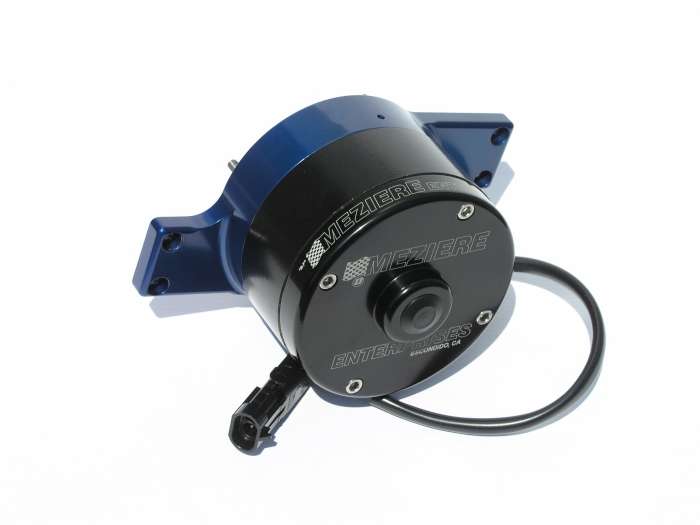

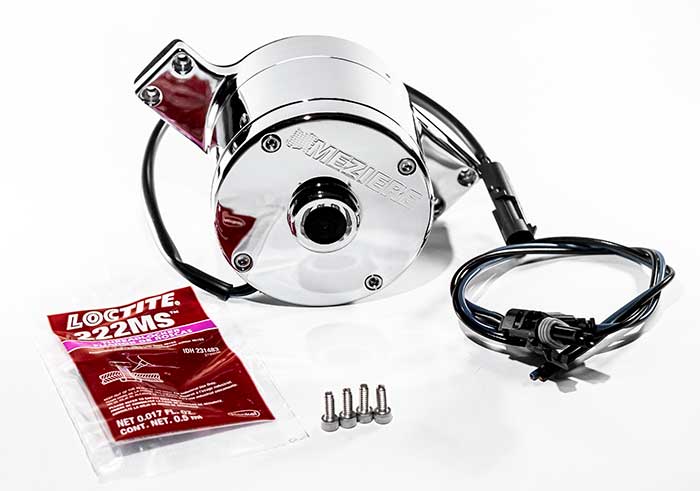

Electric Pump Center Section - 100 Series

Electric Pump Center Section - 100 Series

$359.94 USD
$359.94 USD
Sale Sold out
color
motor

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Our 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value! If you feel the need to carry a spare or replace a worn out pump, we can address that with our replacement center sections. These are easy, drop in units that fit most of our 100 series pumps and can be installed in just minutes.

WP150R
View full details

Instructions

PDF

Technical Specifications

Amperage draw: Under normal use the pump will draw 6-7 amps. 16 volt systems: The 12 volt pump will work with 16 volt systems. Do not run the pump while charging. Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.

Description & Application

This model features:
Fits the following 100 series pumps: WP100, WP101, WP103, WP106, WP108, WP110, WP111, WP114, WP116, WP119 and WP125
Suitable for street or drag strip use – 2400+ hour life expectancy
Show quality finish
Standard motor provides 35 gallons per minute free flow rating
Heavy duty motor option provides 42 gallons per minute free flow rating
Heavy duty motor is .5" longer and provides 3000+ hour life expectancy
All stainless steel hardware included
Stainless steel large diameter main shaft with high performance ceramic seal
