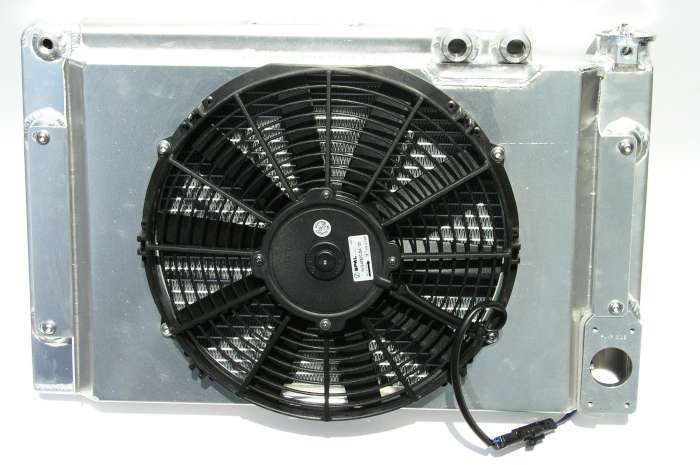

Radiator, Pro Stock style, 14" x 22", dual #12 top hoses, with fan and shroud.
Radiator, Pro Stock style, 14" x 22", dual #12 top hoses, with fan and shroud.
As with our entire line of parts, our radiators are scrutinized to assure you of the highest quality. The radiator cores are furnace brazed and 100% pressure checked before they are allowed out the door. We have selected the most efficient core possible and offer high qualty fans and shrouds as well.
SKU:WC0311
Couldn't load pickup availability
Collapsible content
Technical Specifications
Overall Dimension 14" high by 22" wide.
Overall thickness 6.0" including the fan and shroud assembly.
Fan and shroud included.
Single pass design with upper bypass tube.
Upper hose connections (2 x #12 AN) on passenger side.
Lower hose omitted. Water pump mounted low on passenger side.
Single out or double out pumps available.
Radiator cap provision on passenger side.
Mounting bosses on front side.
Lower mounting flanges right and left.
Dual upper hose connections are #12AN female ports.
