Meziere Enterprises

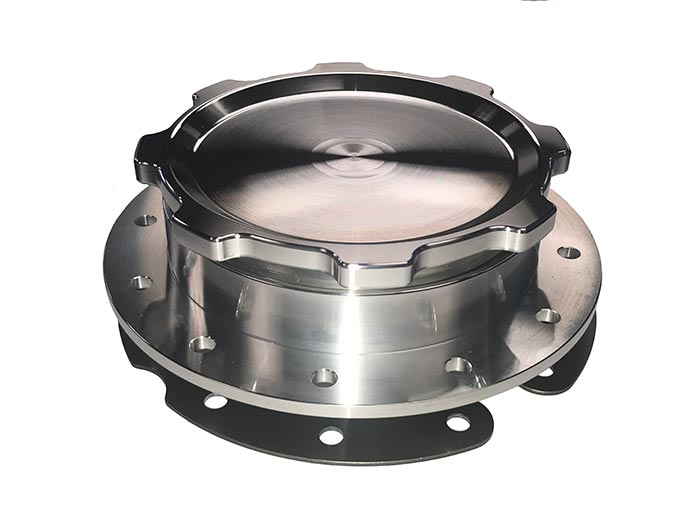

Cap and Bung Assy, 4 Inch Fuel Cell, Bolted Flange
Cap and Bung Assy, 4 Inch Fuel Cell, Bolted Flange
Regular price
$150.38 USD
Regular price
Sale price
$150.38 USD
Cap and bungs have many uses. Normally we see them used to fabricate fuel tanks or installed to be used as filler/inspection caps on differentials or valve covers. The bung for the 4" version is available aluminum with a flange for bolting or a weld-on design. The caps are all aluminum. We offer these caps with external (male) threads.
SKU:PN6800
Quantity
Couldn't load pickup availability
Collapsible content

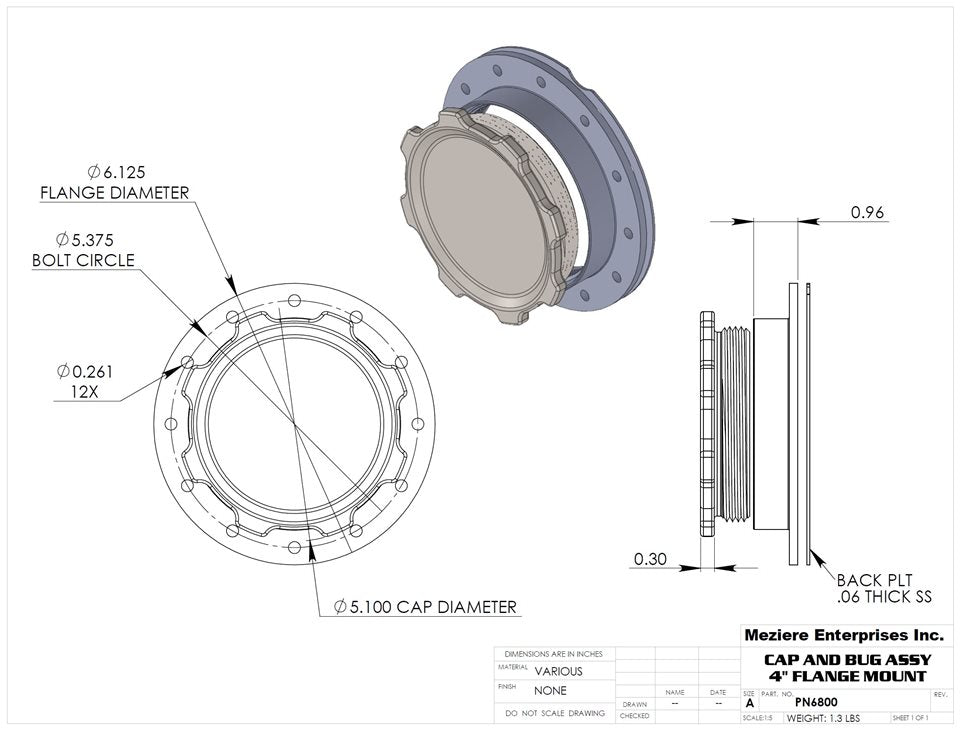

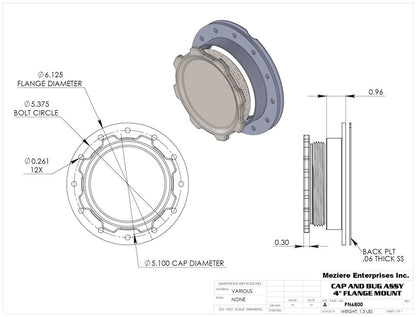

Technical Specifications
This part number features:
Alminum cap machined from 6061.
Mill profiled grip surface.
Cap threaded externally 4-1/4"-8 thread.
O-ring on cap.
Aluminum bung machined from 6061.
Stainless Steel backup ring .06" thick
Sold in sets - 1 cap, 1 bung, 1 o-ring and 1 backup ring.
