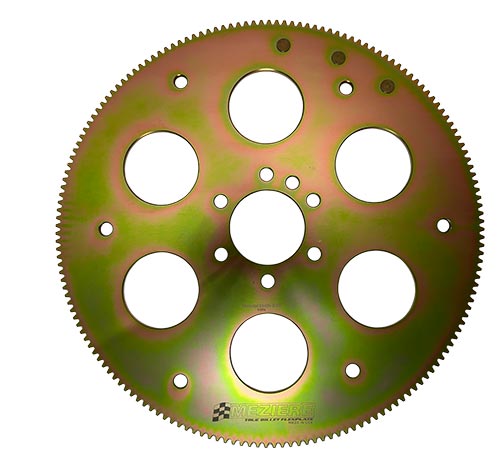

Flexplate, Externally Balanced 502 Chevy, Airboat (Non-SFI)
Flexplate, Externally Balanced 502 Chevy, Airboat (Non-SFI)
This flex plate is specifically configured to work with Century Drive airboat units for factory externally balanced 502 Chevrolet engines. Will also work on 502 street cars that do not require SFI sticker.
SKU:FPS226
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece main plate. No welded ring gear!
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits big block Chevrolet, 502 CI Style externally balanced.

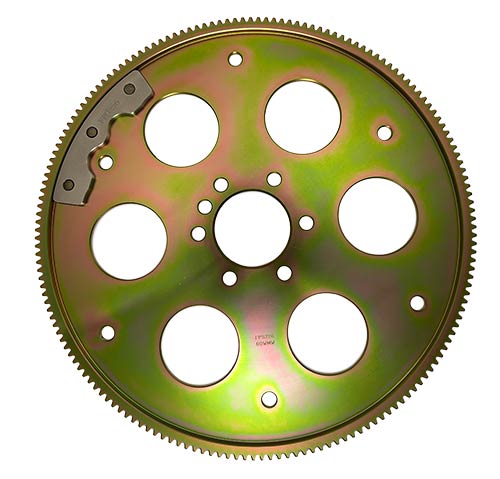

SS Weight riveted on. Final balance should be verified by your engine builder.
168 tooth ring gear.
12 pitch tooth profile.
Weighs 7.5 pounds.
Converter pattern to mate with Century Drive for Airboats.
Note: Externally balanced plates not eligible for SFI Certification.
