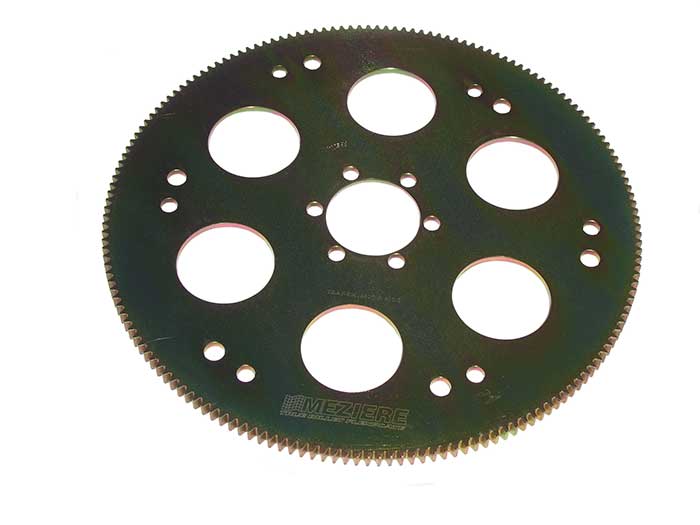

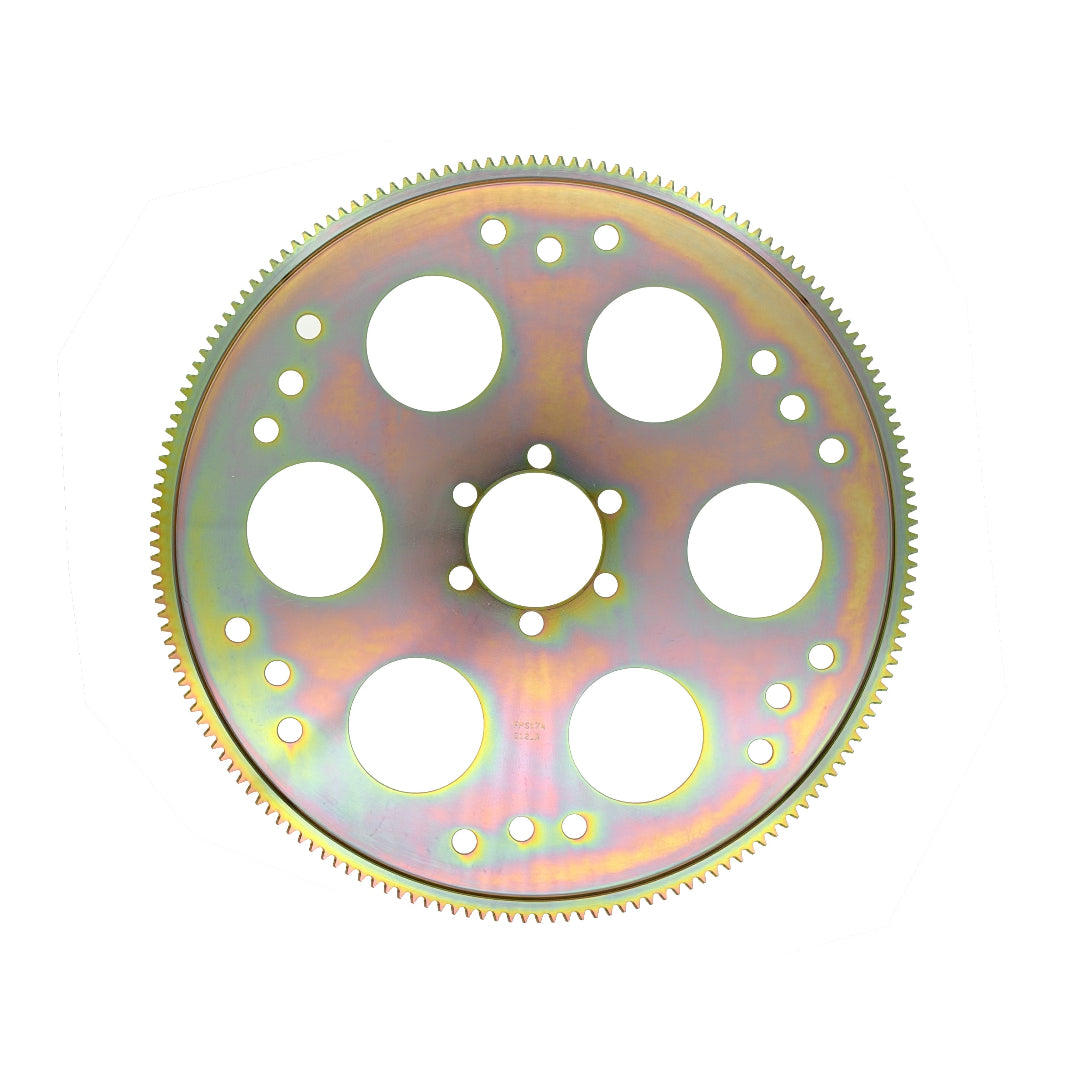

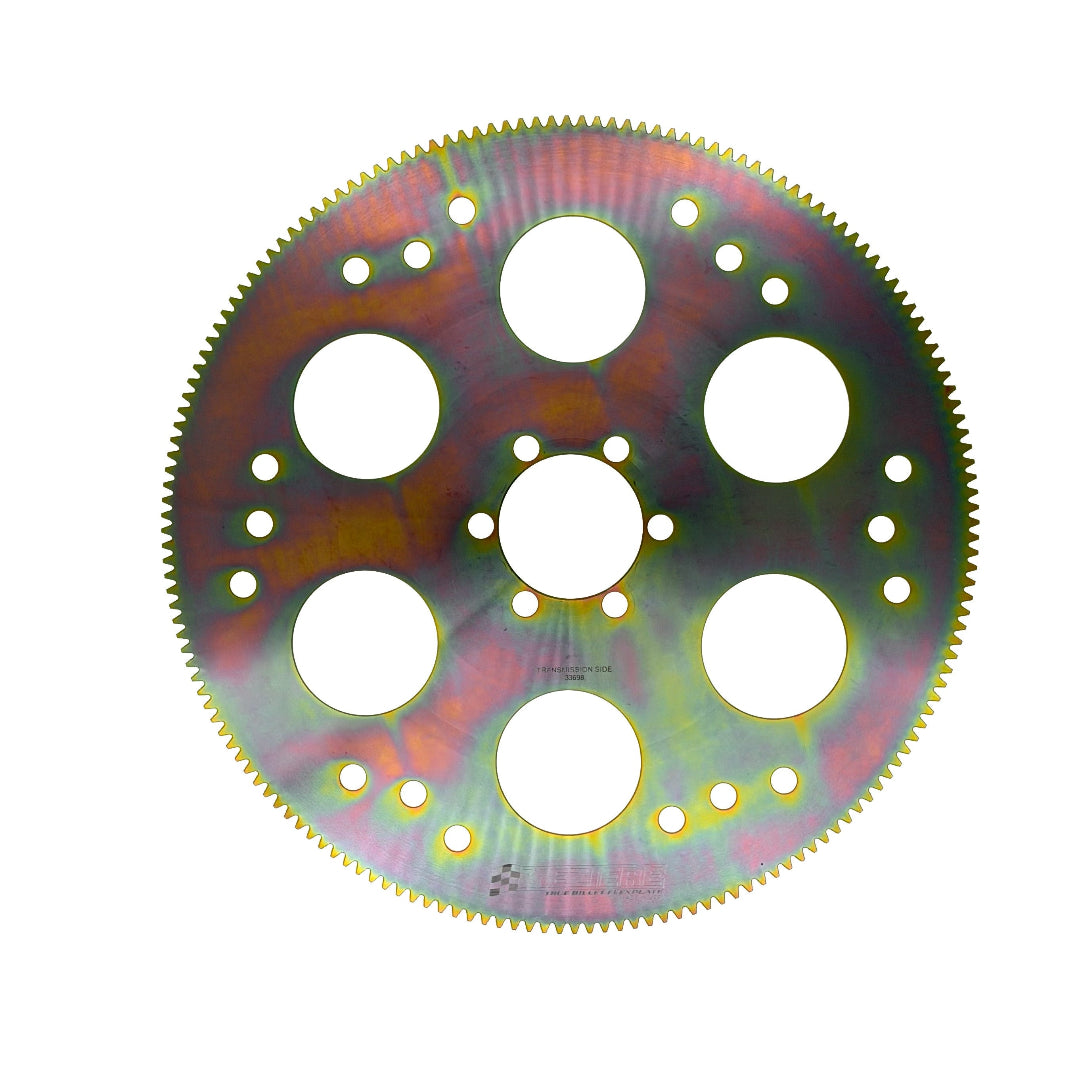

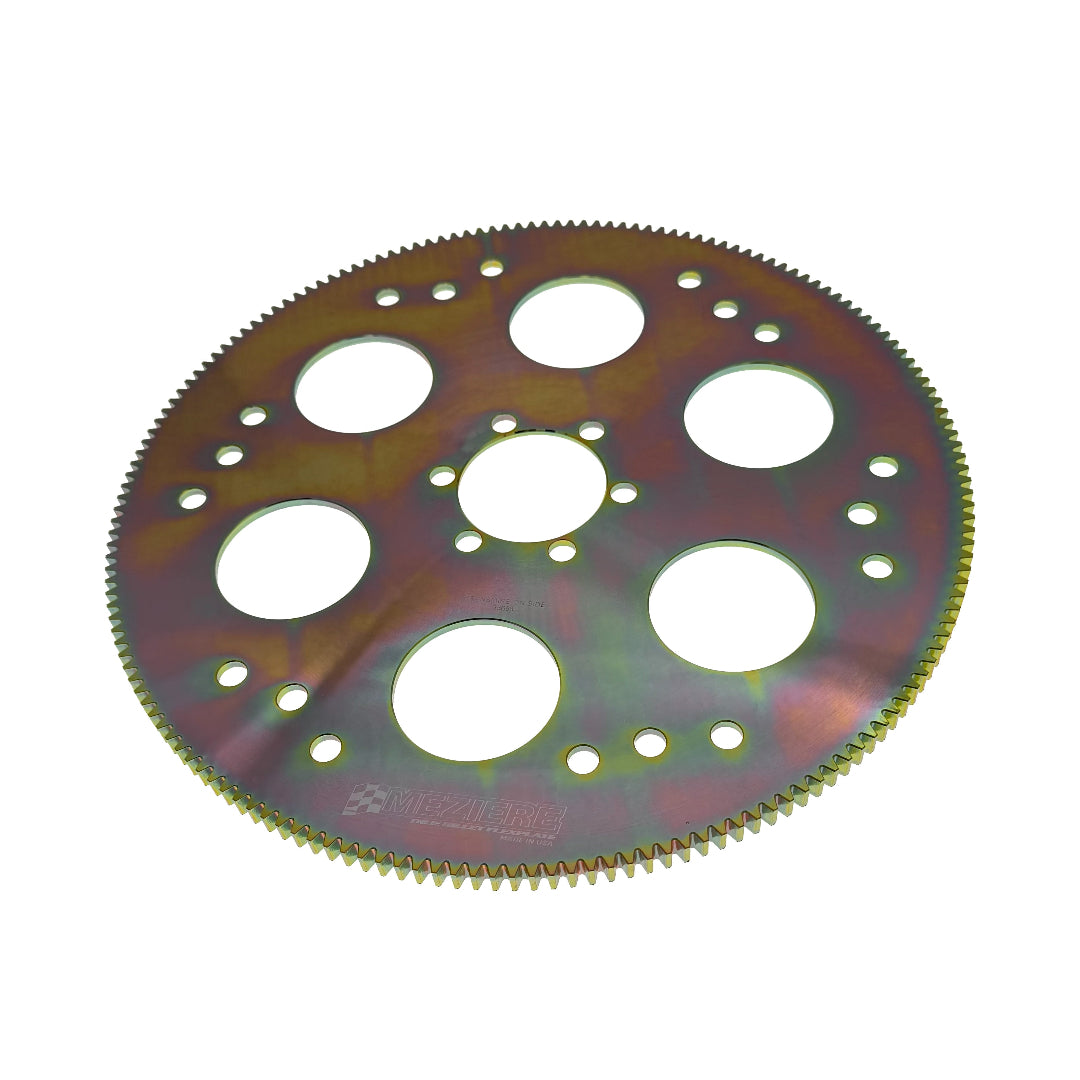

True Billet Flexplate, GM LS Flat 168 tooth
True Billet Flexplate, GM LS Flat 168 tooth
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.2.
SKU:FPS174
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits GM LS engines with 6 bolt crank.
168 tooth ring gear.
12 pitch tooth profile.
Weighs 6.95 pounds.
Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 6 holes 7/16" diameter on 11.50" bolt circle.
Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 4 - 3 holes 7/16" diameter on 11.50" bolt circle.
*Note - Patterns 3 and 4 provide the "split" pattern 3 in and 3 out.
Description & Application
This plate was developed with common drag race transmissions in mind. On the initial install you will need part FPS174A to complete the package as well as bolt kit
FPHM111.5MMx1.125-6 (Long LS crank bolts)
. The beauty of this plate and accompanying parts, is that it bolts directly on to the standard 6 bolt LS crank, provides the factory location for the ring gear, ensuring standard starter fitment and provides the correct location and bore for a standard TH400 or Powerglide torque converter. If you are coupling an LS engine to a Powerglide or TH400 transmission this plate will be a real problem solver.
