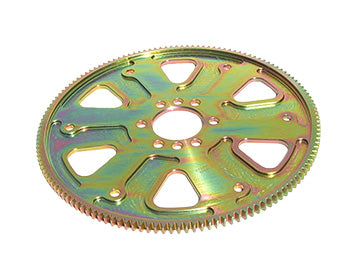

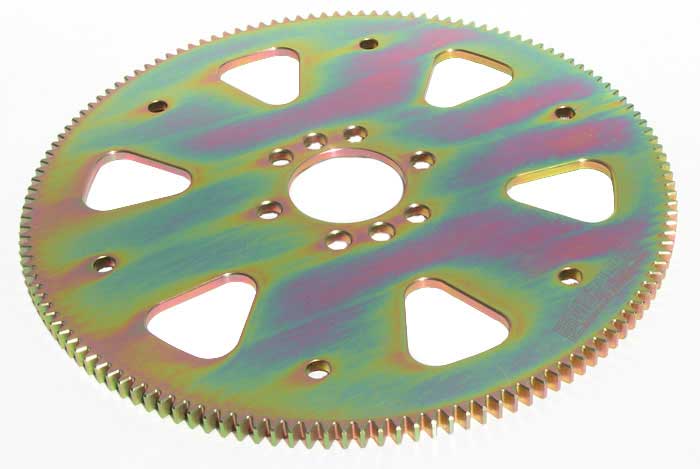

True Billet Flexplate, Chevy Pro Mod 136 tooth, Special crank 6+2 at 1/2", 6 on 10.75"
True Billet Flexplate, Chevy Pro Mod 136 tooth, Special crank 6+2 at 1/2", 6 on 10.75"
These plates are clearly the superior choice for quality and precision. In addition, this is one of our "Pro Mod Extreme Strength" plates. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the least runout and the best longevity on the market. All of our flexplates are certified to SFI 29.2
SKU:FPS145
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits Chevrolet crank with 1/2" bolts.
***Special crank pattern 6 standard bolts but 1/2" diameter plus 2 on dowel centerline
MUSI pattern***
136 tooth ring gear.
10 pitch gear form.
13.83" diameter fits inside "double liner" clutch cans.
Neutral balance.
Weighs 7.9 pounds.
Converter pattern - 6 holes 7/16" diameter on 10.75" bolt circle.
