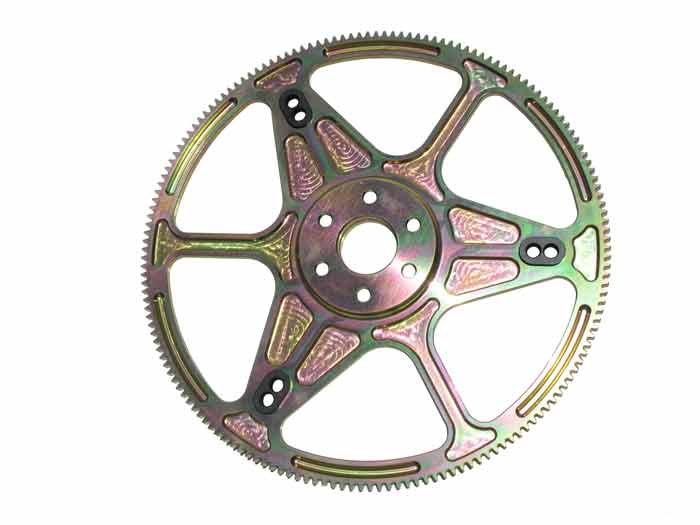

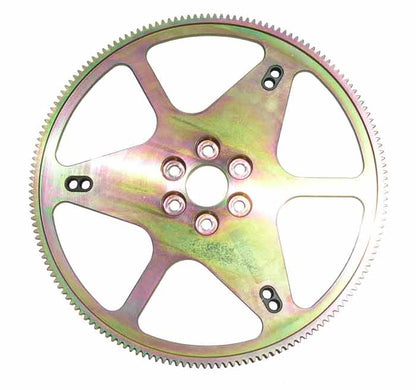

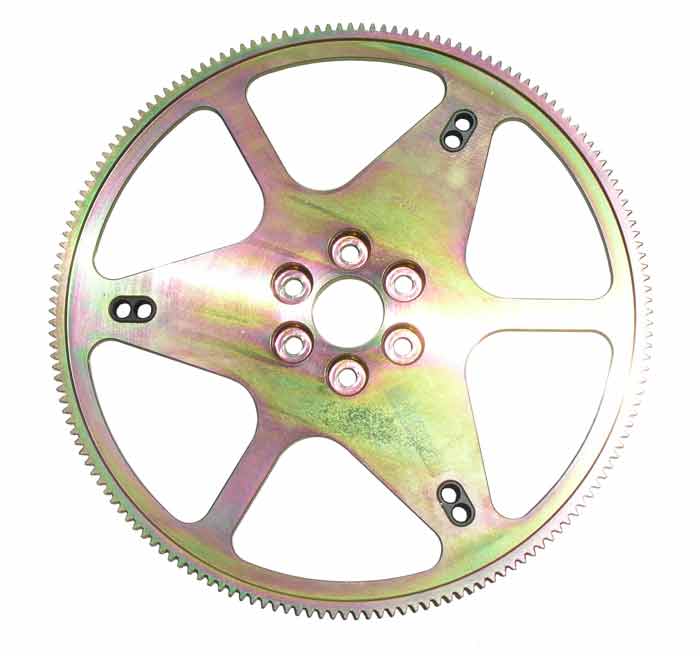

True Billet Flexplate, SB Ford 164 tooth, Low Inertia
True Billet Flexplate, SB Ford 164 tooth, Low Inertia
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.2.
SKU:FPS139
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits small block Ford.
Crank pattern is 6 on 3" B.C.
164 tooth ring gear.
12 pitch tooth profile.
Weighs 6.0 pounds.
Converter pattern 1 - 3 holes 7/16-20 thread on 9.75" bolt circle.
Converter pattern 1 - 3 holes 7/16-20 thread on 10.75" bolt circle.
