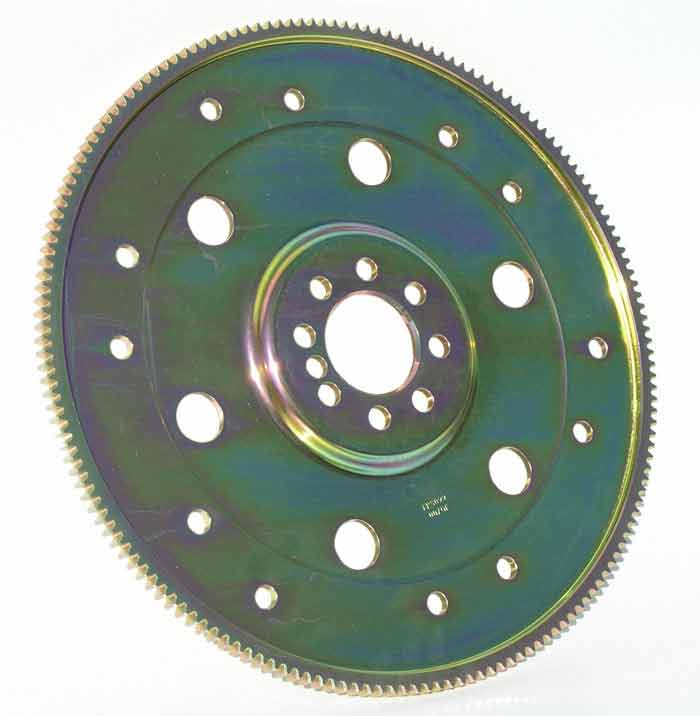

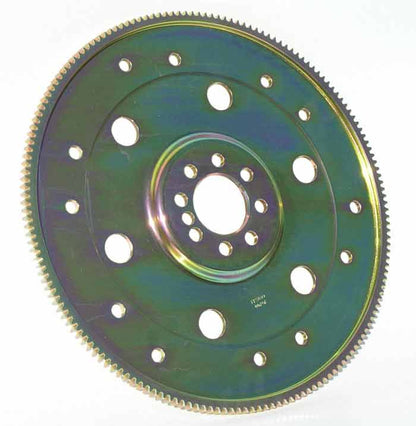

True Billet Flexplate, GM LS 168 Tooth, Heavy Duty
True Billet Flexplate, GM LS 168 Tooth, Heavy Duty
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our neutral flexplates are certified to SFI 29.2.
SKU:FPS099
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits GM LS engines with 8 bolt crank.
168 tooth ring gear.
12 pitch tooth profile.
Weighs 9.3 pounds.
Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 3 holes 7/16" diameter on 11.50" bolt circle.
Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle.
Note: Patterns 2 and 3 are clocked to provide the "split" pattern.
Description & Application
Built for the demands of the automotive aftermarket, this plate is usually used when a GM LS powerplant is coupled with an aftermarket transmission.
