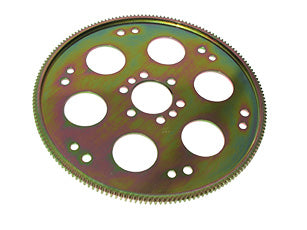

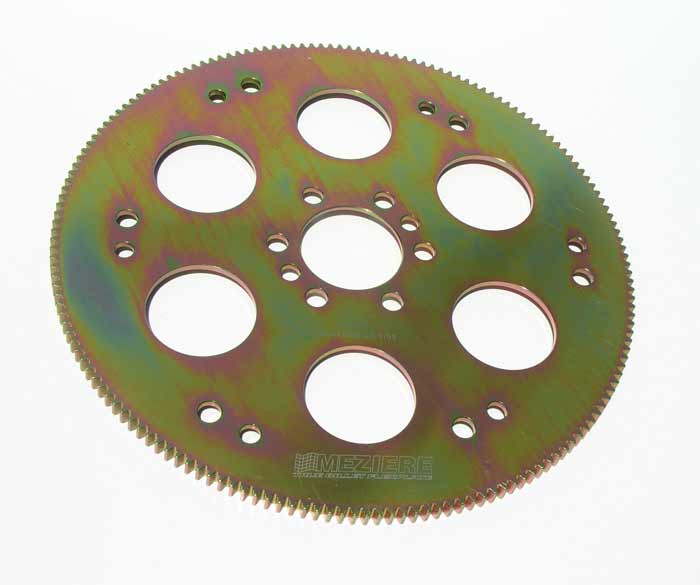

True Billet Flexplate, Chevy 168 tooth, 1/2 crank holes
True Billet Flexplate, Chevy 168 tooth, 1/2 crank holes
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.2.
SKU:FPS094
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits big and small block Chevrolet EXCEPT
*** for cranks with 1/2" diameter threaded holes
168 tooth ring gear.
12 pitch tooth profile.
Weighs 7.0 pounds.
Neutral balance.
Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 6 holes 7/16" diameter on 11.50" bolt circle.
Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 4 - 3 holes 7/16" diameter on 11.50" bolt circle.
*Note - Patterns 3 and 4 provide the "split" pattern 3 in and 3 out.
