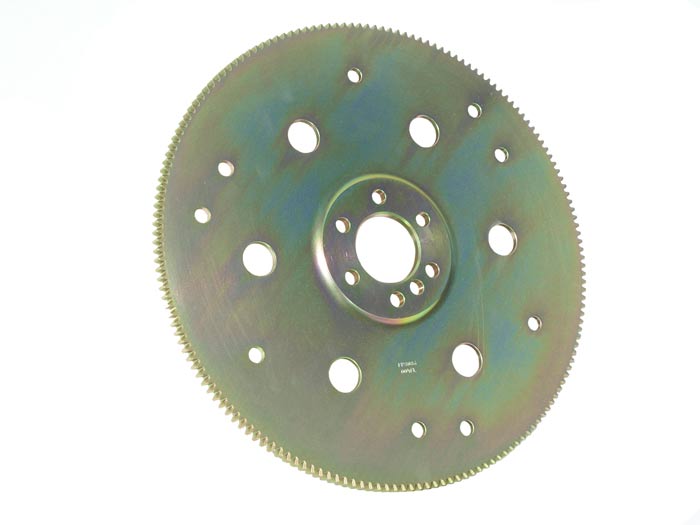

True Billet Flexplate, GM LS Flat 168 tooth
True Billet Flexplate, GM LS Flat 168 tooth
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.2.
SKU:FPS086
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits GM LS engines with 6 bolt crank.
Non-standard converter spacing!!
168 tooth ring gear.
12 pitch tooth profile.
Weighs 8.85 pounds.
Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 3 holes 7/16" diameter on 11.50" bolt circle.
Description & Application
Built for the demands of the automotive aftermarket, this plate is usually used when a GM LS powerplant is coupled with an aftermarket transmission. It is not appropriate for TH400 or Powerglide transmission applications. It has been used with Albins and other aftermarket gear boxes.
