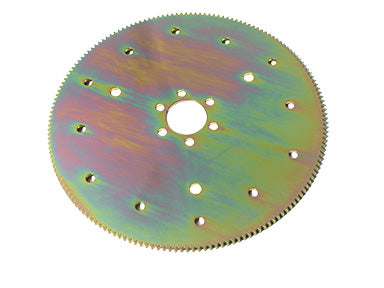

True Billet Flexplate, SB Ford 164 tooth, Flat design, off-road applications

True Billet Flexplate, SB Ford 164 tooth, Flat design, off-road applications

$581.71 USD
$581.71 USD
Sale Sold out

These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.2.

FPS036
View full details

Instructions

PDF

Technical Specifications

Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits Small Block Ford.
164 tooth ring gear.
12 pitch tooth profile.
Weighs 8.6 pounds.
Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 6 holes 7/16" diameter on 11.50" bolt circle.
Converter pattern 3 - 4 holes 7/16" diameter on 11.38" bolt circle.

Description & Application

This plate was developed with common race transmissions in mind. On the initial install you will need part FPS036A to complete the package as well as bolt kit
FPH437150 (Long crank bolts)
. The beauty of this plate is that it bolts directly on to the standard 6 bolt SB Ford crank, provides the factory location for the ring gear, ensuring standard starter fitment and provides the correct locations for a standard TH400 or Powerglide torque converter. If you are coupling a Small Block Ford engine to a Powerglide or TH400 transmission this plate will be a real problem solver.
