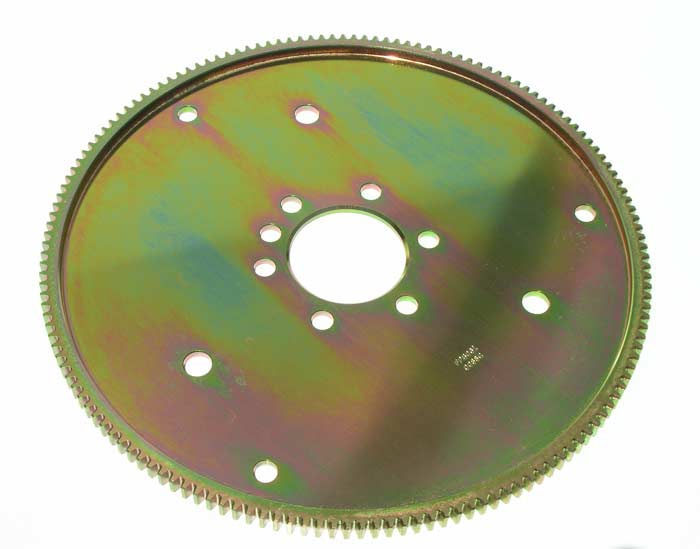

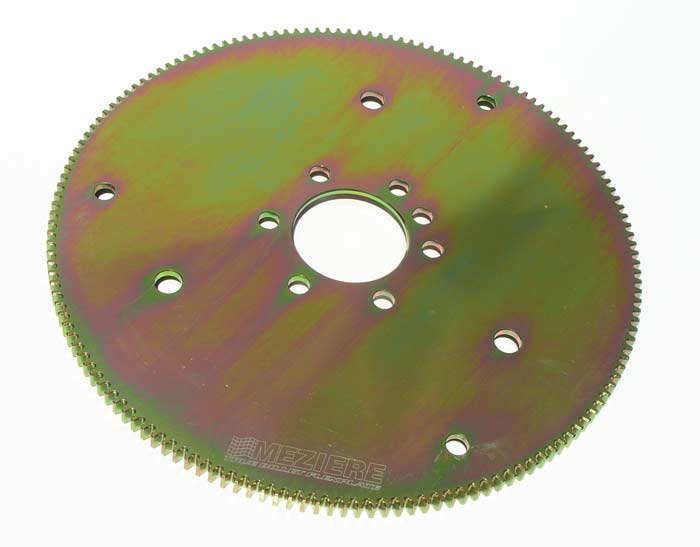

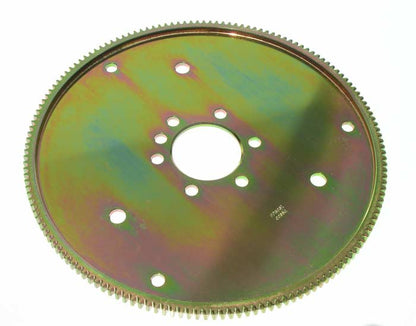

Off-Road Billet Flexplate, Chevy 153 tooth
Off-Road Billet Flexplate, Chevy 153 tooth
The off-road plates are designed specifically with endurance in mind. Using our experience with the premier teams of long and short course off-road we have eliminated stress points to produce the very best solution to get the power from your Chevrolet engine to your automatic transmission.
SKU:FPS031
Couldn't load pickup availability
Collapsible content
Technical Specifications
Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits big and small block Chevrolet.
153 tooth ring gear.
12 pitch tooth profile.
Weighs 7.3 pounds.
Converter pattern 1 - 3 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 3 holes 1/2" diameter on 10.75" bolt circle.
