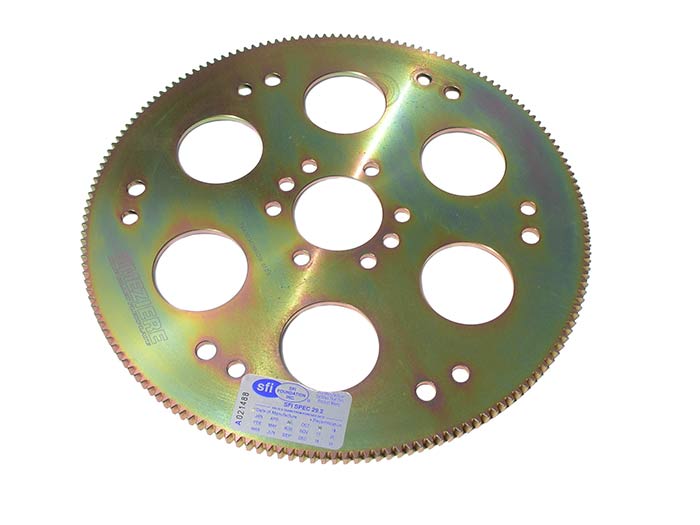

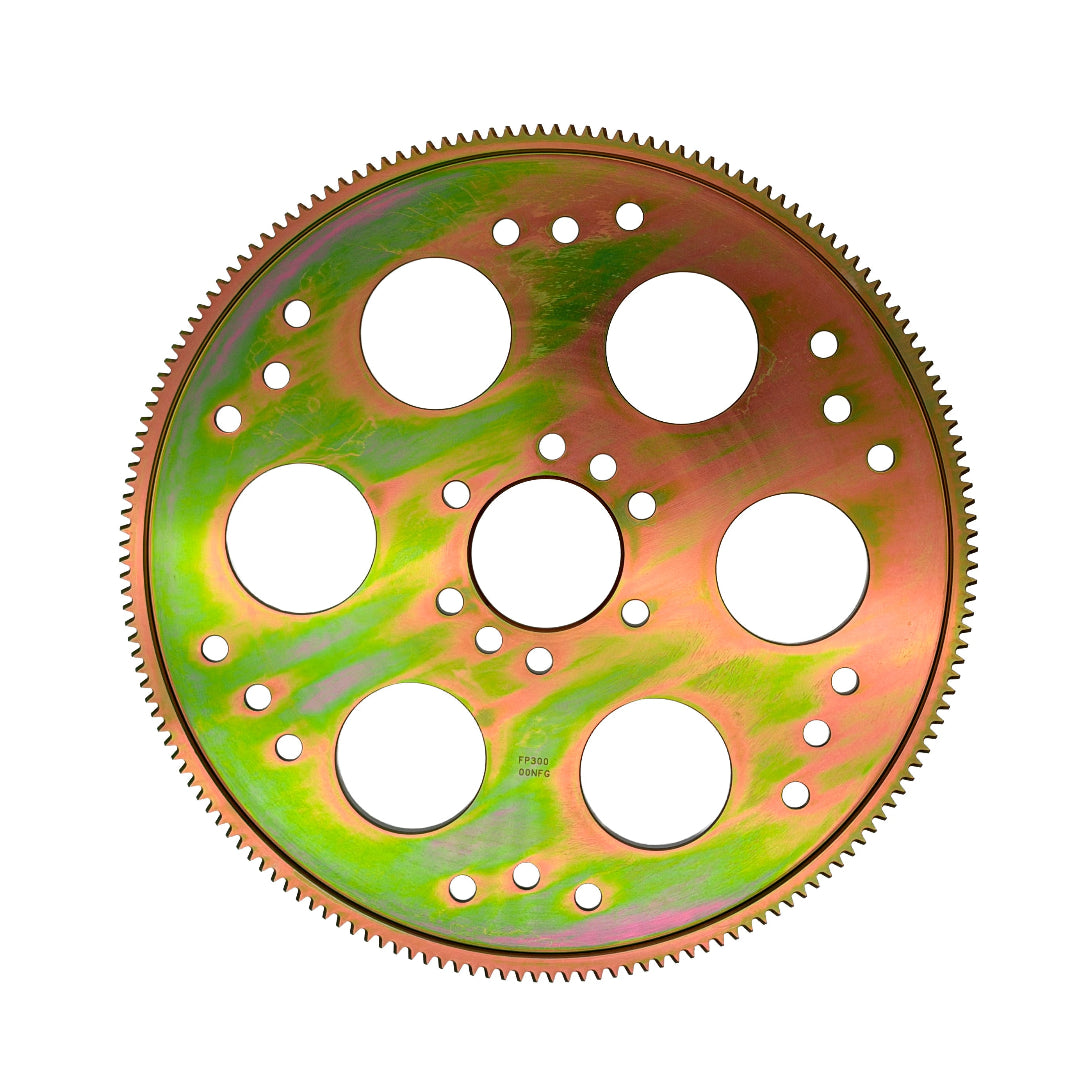

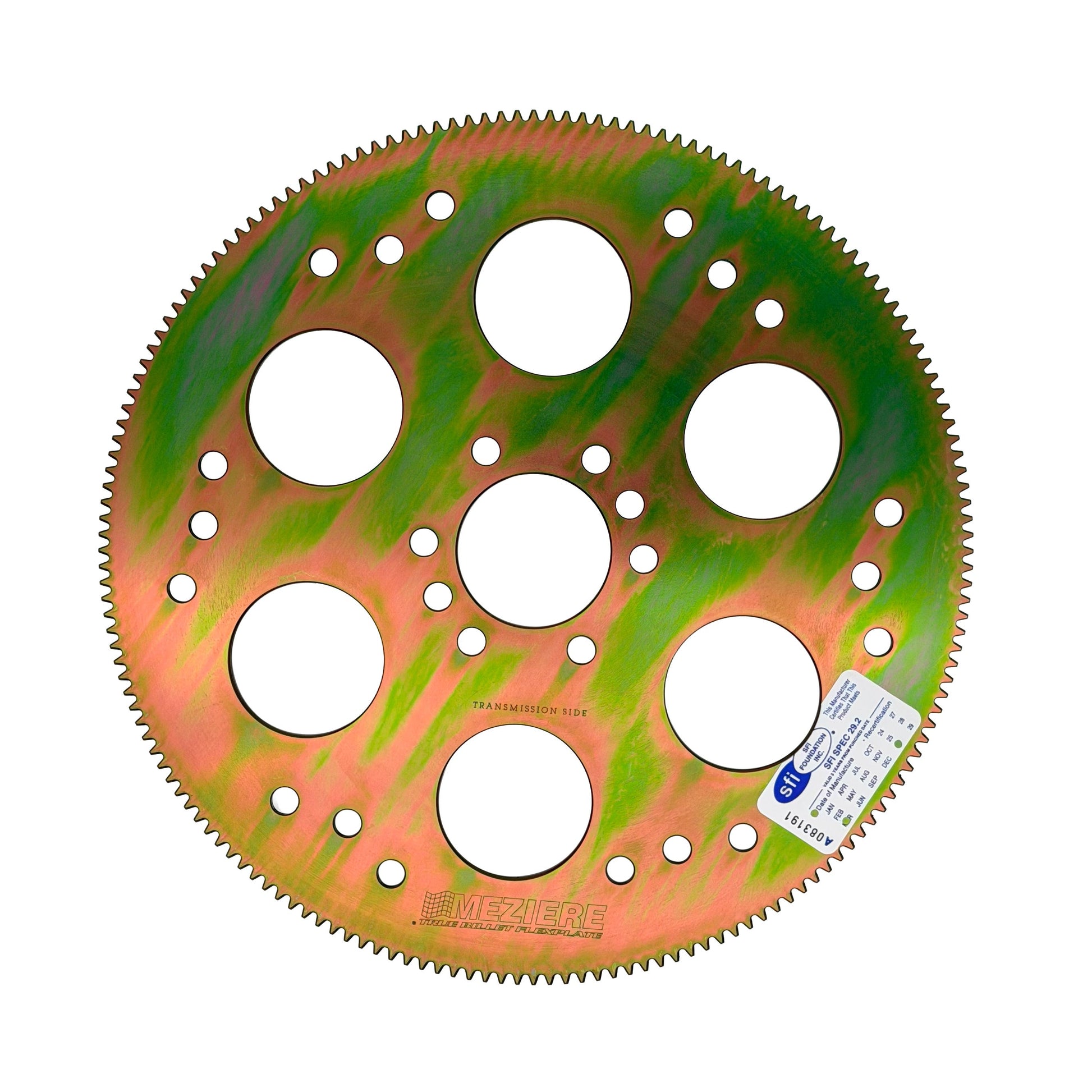

Features of this part number include:
Concentric machined to .005".
One piece design - 100% machined.
Proprietary heat treating process.
Chamfered gear tooth provides better engagement.
Application information:
Fits big and small block Chevrolet.
168 tooth ring gear.
12 pitch tooth profile.
Weighs 7.0 pounds.
Converter pattern 1 - 6 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 2 - 6 holes 7/16" diameter on 11.50" bolt circle.
Converter pattern 3 - 3 holes 7/16" diameter on 10.75" bolt circle.
Converter pattern 4 - 3 holes 7/16" diameter on 11.50" bolt circle.
*Note - Patterns 3 and 4 provide the "split" pattern 3 in and 3 out.
