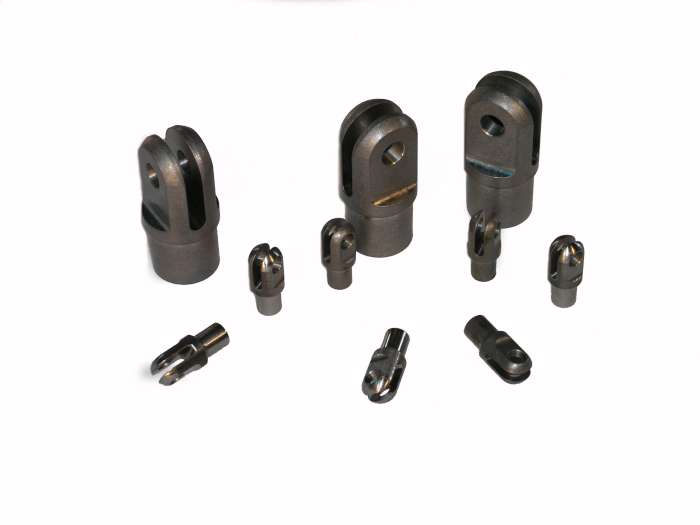

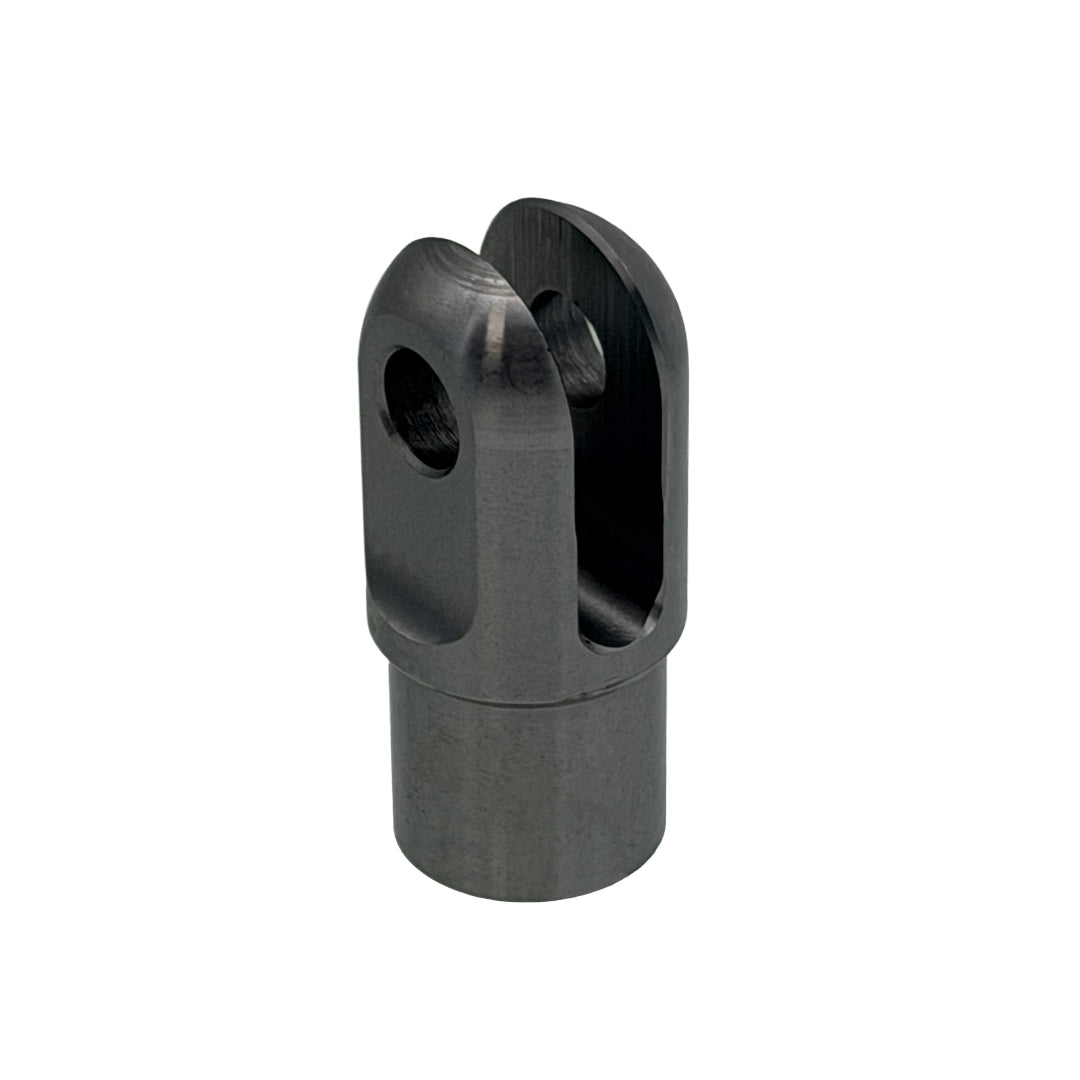

Our 4130 alloy weld in clevises are strong and consistent. Built to fit tube sizes from 3/8" to 1 1/2", the professional or hobbyist will appreciate the care we take in manufacturing these parts.
This part number features:

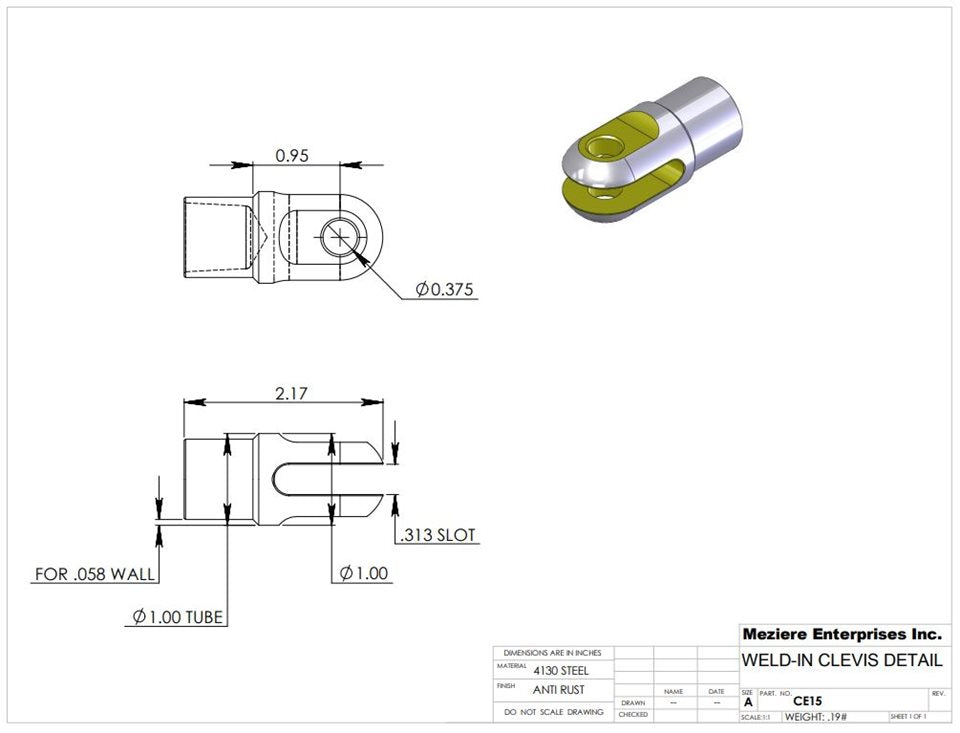

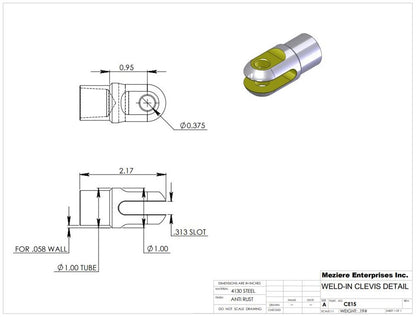

Slip diameter to fit 1" diameter tube with .058" wall thickness.
.318" wide slot to accept 5/16" thick mating part.
3/8" diameter cross hole.
Raw machined finish - ready to weld.
