Starting System Support
Starter Tech Topics

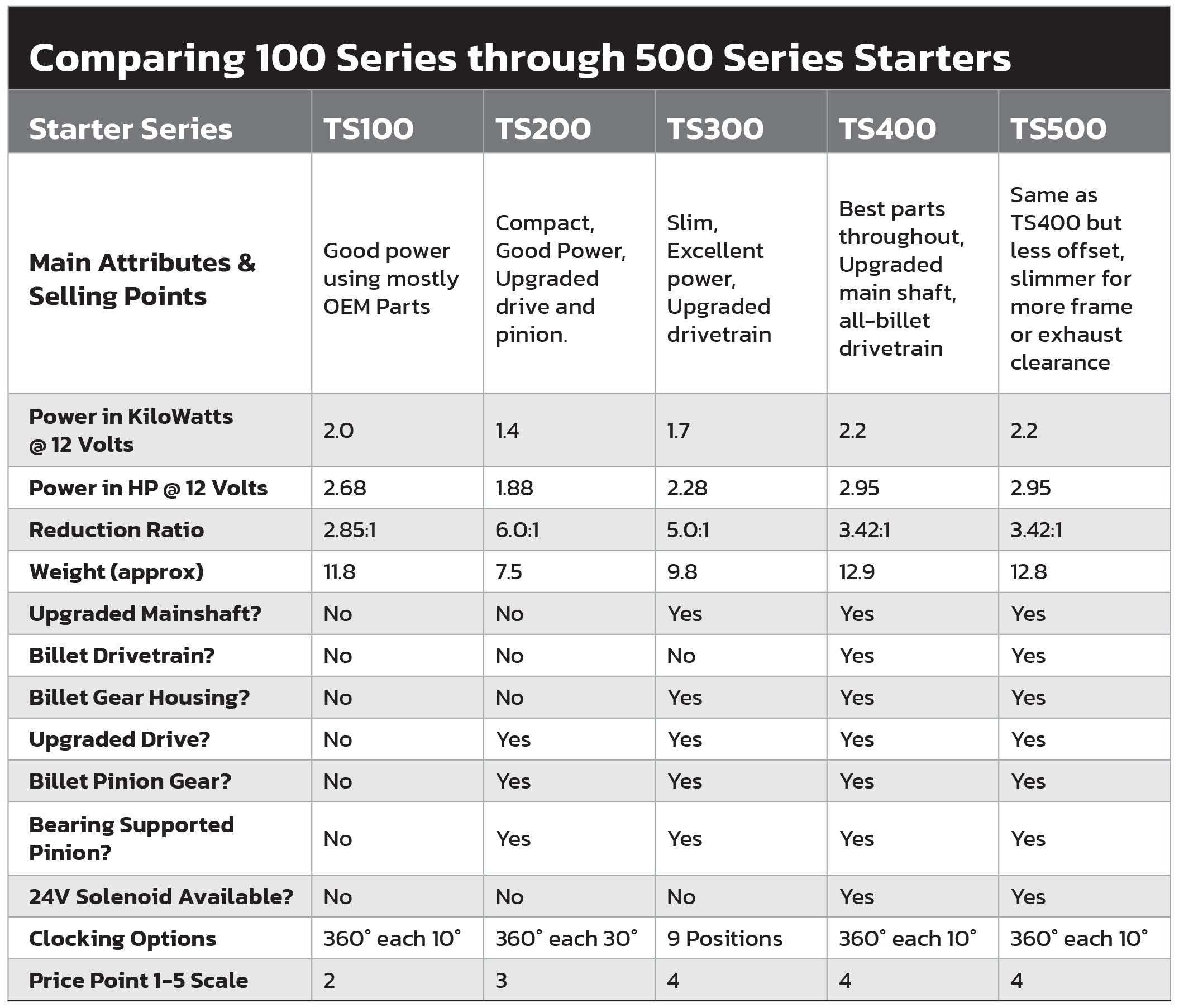

Comparison of TS100 - TS500 Meziere Starters
This chart shows the difference between starter series. For dimensional information please reference the product catalog.

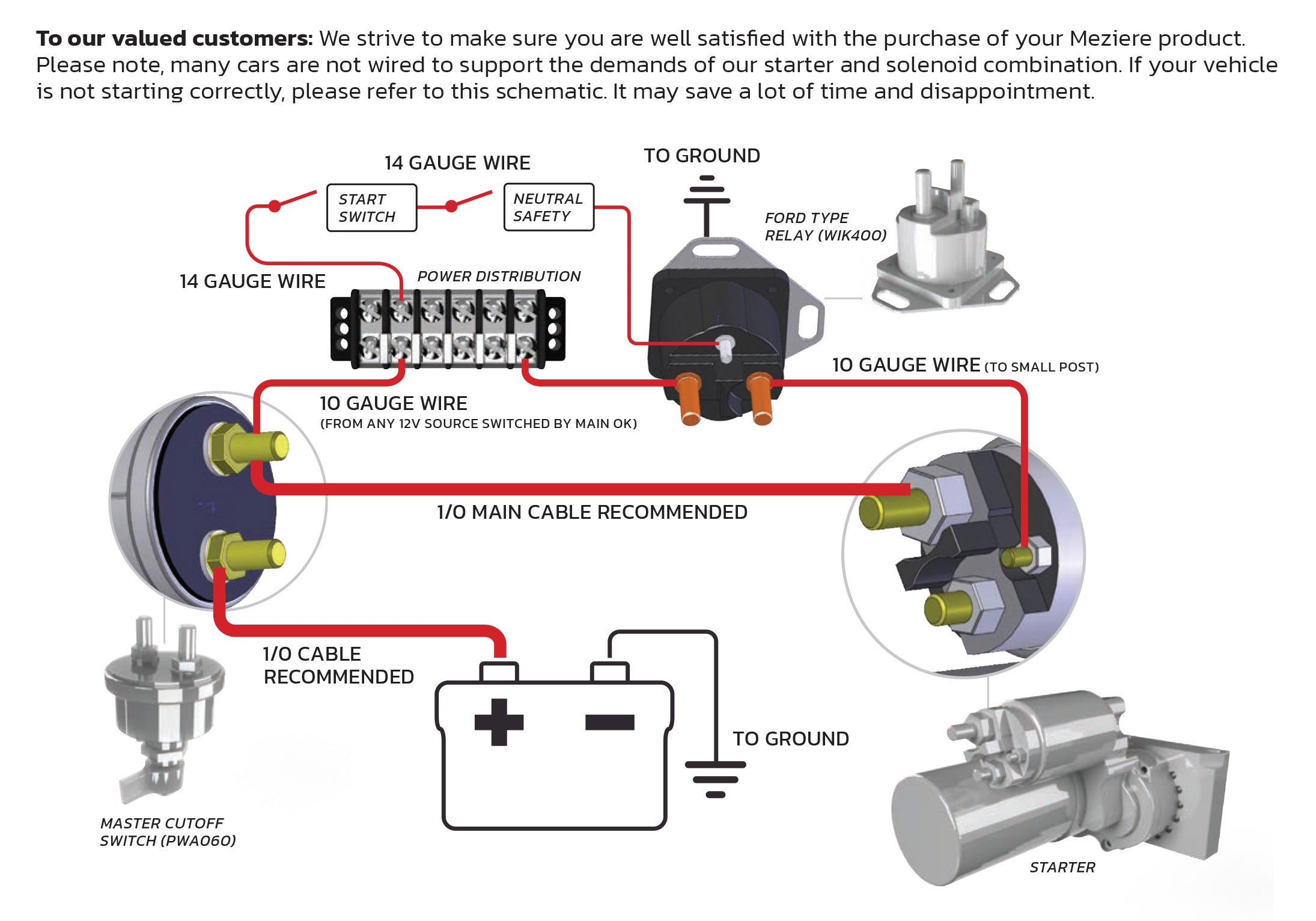

Wiring
When having issues with "clicking" or slow starting please consult this diagram. For slow starting check voltage at each point under cranking load to determine where a voltage drop is occurring.
Flexplate Technical Topics

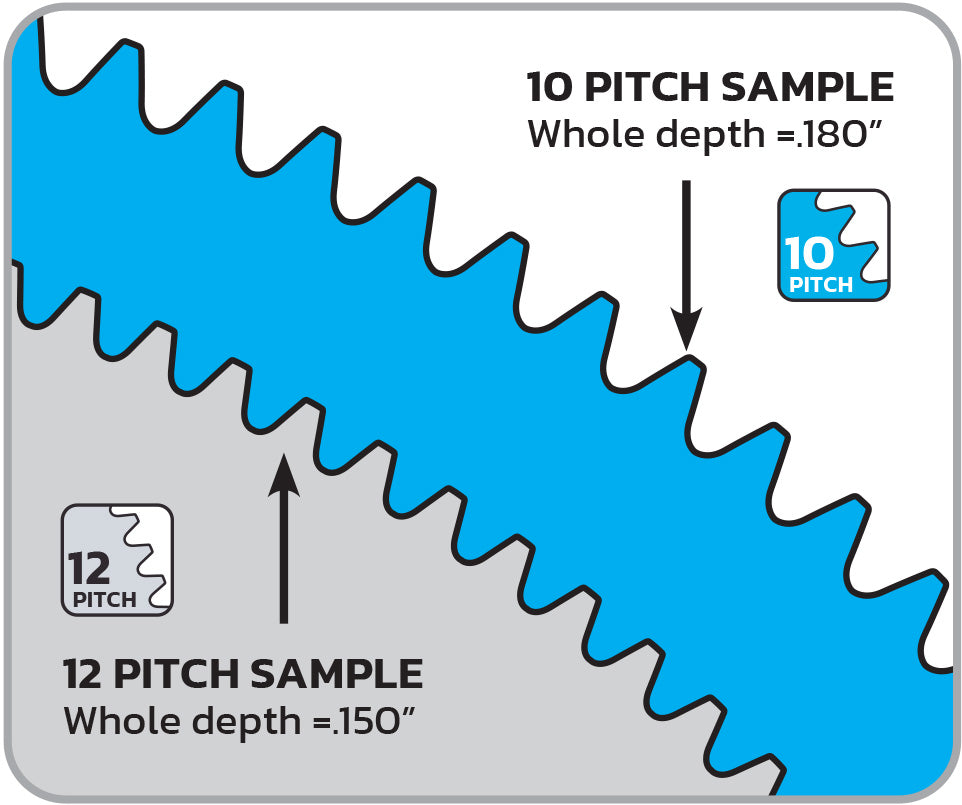

10 Pitch Vs. 12 Pitch
The graphic demonstrates the larger profile which assists in a couple of ways. We have found the overall tooth strength to be better and the larger dimension actually assists in getting the pinion to engage the ring gear. These benefits are widely acknowledged and our ten pitch plates have become increasingly popular.

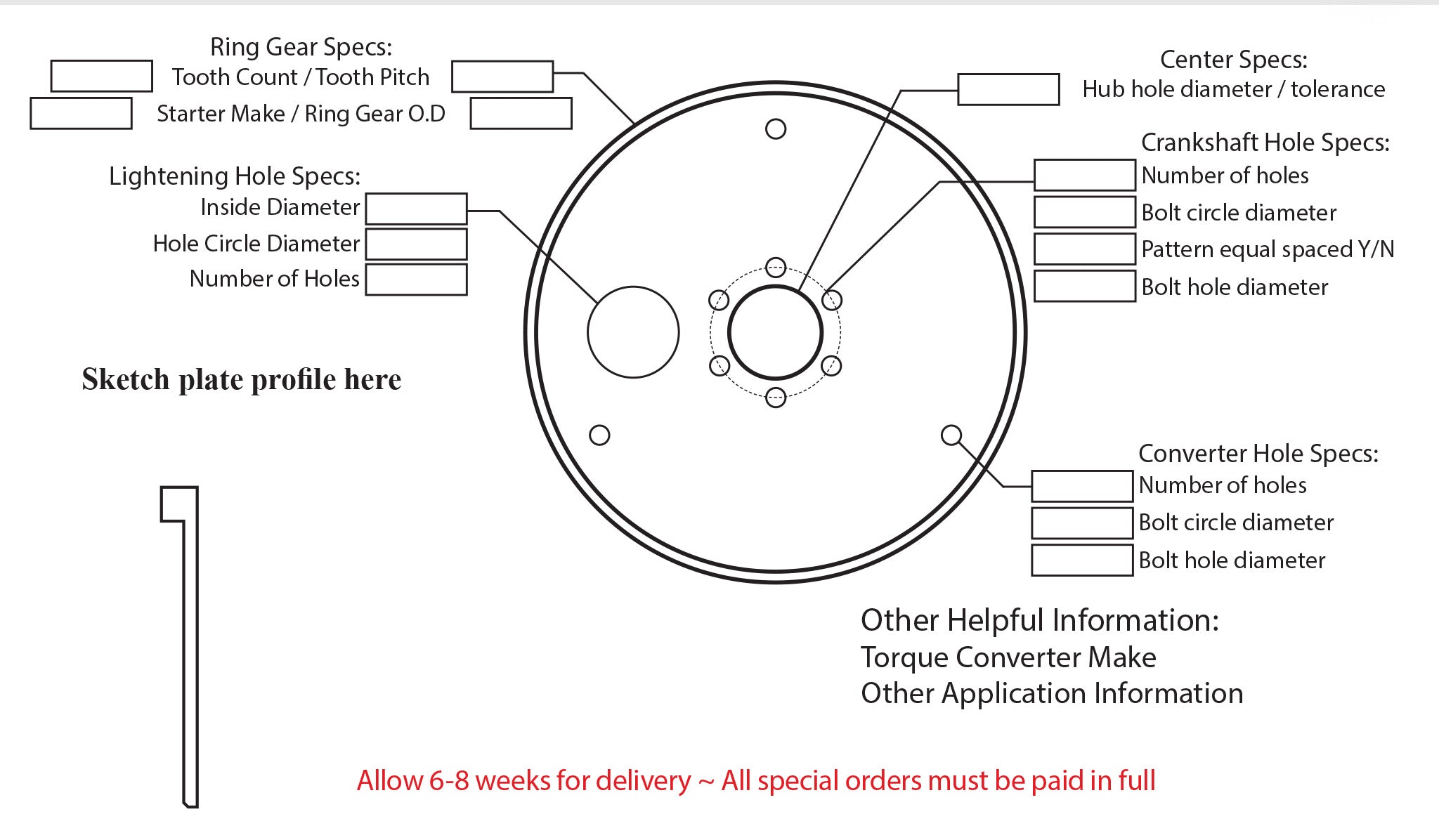

Ordering a Custom Flexplate
This worksheet helps to ensure all the required dimension are prepared before ordering a custom flexplate. This is only used for non standard plates that are not existing part numbers. If you are unsure please call us!
